XWB漩渦氣泵
詳細介紹
XWB
1.說明
XWB 系列漩渦氣泵采用國際先進結構設計制造，具有性能更高，噪聲更低，壽命長，免維護等特點，是提供吸氣或排氣更理想的氣源設備，廣泛應用于印刷、紡織、氣體傳送、吸塵、液體攪拌、污水處理、水產養殖等行業。

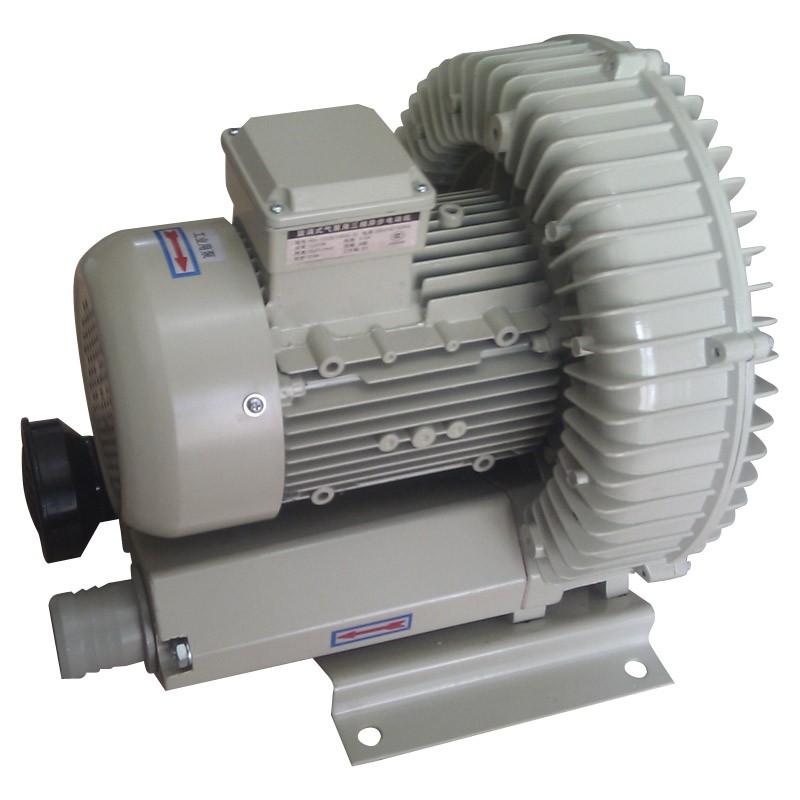

2.圖片

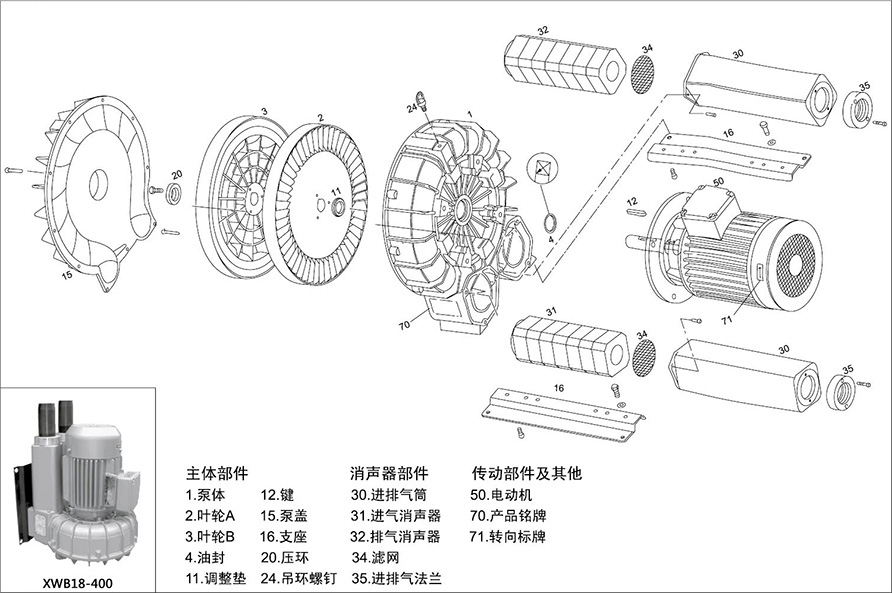

3.氣泵分解圖
4.技術規格及參數
| Item/Type | Capacity | Rated Vacuum | Rated Pressure | Motor Rating | Net Weight | Pump Size |
| m3/h | kPa | kPa | W | kW | MM | |
| XWB1-17 | 18 | -5 | 7.5 | 90 | 4.7 | 248x198x224 |
| XWB2-16 | 21 | -5 | 7.5 | 120 | 4.7 | 248x198x224 |
| XWB3-11 | 26 | -6.5 | 9 | 180 | 12 | 279x219x243 |
| XWB4-14 | 35 | -10 | 11 | 250 | 9 | 279x240x266 |
| XWB5-1 | 60 | -11 | 12 | 370 | 12 | 279x240x266 |
| XWB6-7 | 95 | -12 | 15 | 550 | 13 | 294x288x315 |
| XWB7-12 | 110 | -14 | 16 | 750 | 14 | 294x288x315 |
| XWB8-2 | 180 | -16 | 22 | 1100 | 20 | 332x328x358 |
| XWB9-4 | 210 | -18 | 22 | 1500 | 28 | 390x360x371 |
| XWB10-3 | 230 | -20 | 28 | 2200 | 32 | 400x385x415 |
| XWB11-8 | 280 | -26 | 35 | 3000 | 38 | 406x384x400 |
| XWB12-9 | 350 | -25.5 | 33 | 4000 | 45 | 413x392x404 |
| XWB13-5 | 380 | -28 | 45 | 5500 | 76 | 486x418x455 |
| XWB14-10 | 400 | -30 | 42 | 7500 | 80 | 498x460x495 |
